YDrip
Description
YDrip is an open-source smart water meter that tracks water usage by detecting the rotation of a magnet inside your existing mechanical meter. When powered via USB, it provides real-time updates, while on battery, data is sent periodically to extend battery life. However, leak alerts are always sent immediately to ensure quick detection.

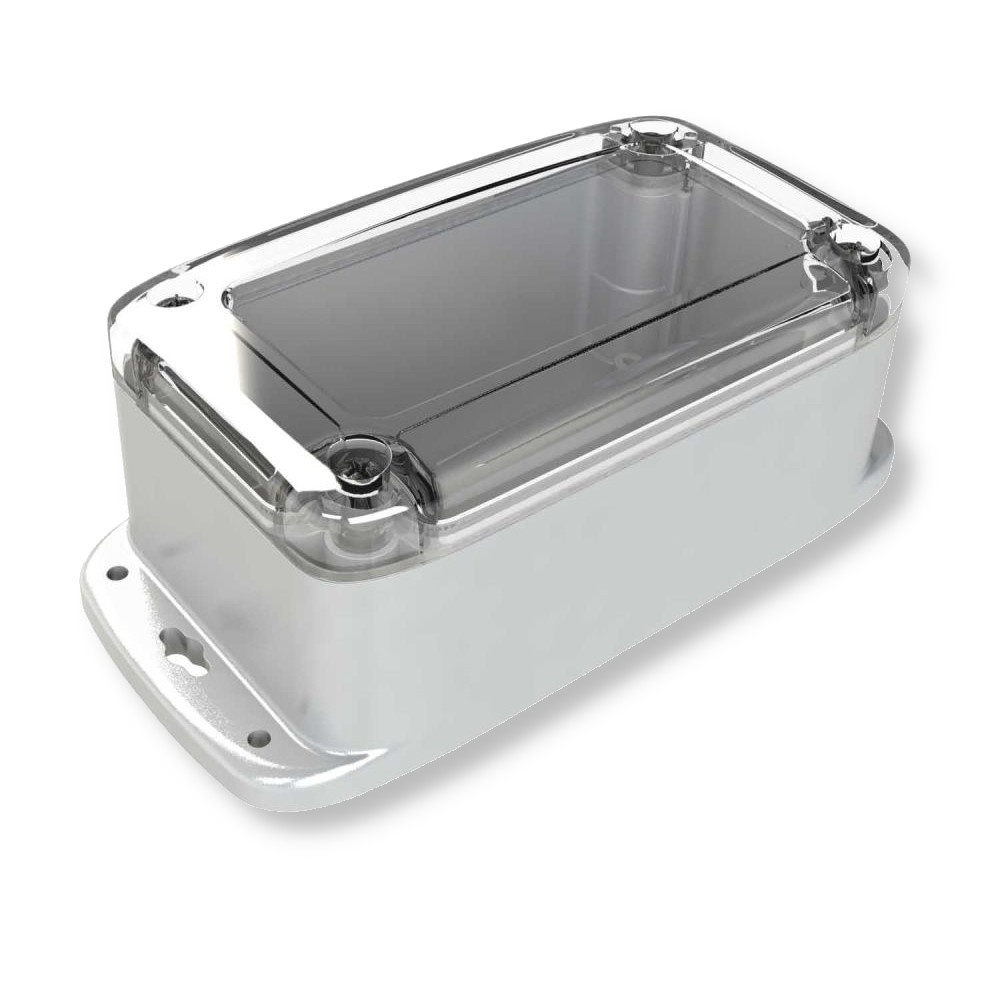

- While the enclosure is IP68-rated (dustproof & water-resistant), it is not designed for full submersion.
- Long-term outdoor testing has not been conducted. Condensation may pose a risk to the electronics.
- Long battery life testing is ongoing. Current estimations are theoretical.
Start Monitoring in 3 Simple Steps
Specs
| CPU | ESP32-S3 |
|---|---|
| Connectivity | 2.4 GHz WiFi |
| Power |
|
| Battery Life | Months 1 |
| Enclosure |
|
| Detection Method | Non-invasive magnetic field sensor (detects rotation of internal magnet) |
| Software |
1 Battery life depends on water usage and reporting frequency.
2 Long-term outdoor testing has not been conducted. The enclosure is not designed for submersion, and condensation may occur with temperature changes, potentially affecting electronics.
Frequently Asked Questions
The current version of YDrip is meant for home automation enthusiasts that are comfortable running and setting up Home Assistant. A basic understanding of flashing ESP32 based devices is required. Future software versions will support cloud storage and easy setup for non-technical users.
The YDrip water meter uses advanced sensors to measure water flow from your homes existing mechanical brass water meter. It connects to your existing water meter non-invasively and provides real-time leak detection and more.
Yes, when powered via USB. On battery, usage is recorded in real-time but sent periodically to conserve power. Leak alerts are always real-time. More frequent updates are possible at the cost of battery life.
We are currently conducting accuracy tests and will update the website with results. YDrip is not intended to replace your city water meter and should not be used where absolute accuracy is required.
YDrip’s software is still in development, but you can expect a few months of battery life.
YDrip has been tested with 5/8" meters (shown below) and should be compatible with most mechanical brass meters. It measures the rotation of a metal wheel inside the meter, corresponding to water flow.
The YDrip enclosure is IP68-rated, meaning it is dustproof and water-resistant, but not designed for full submersion, especially for extended periods. However, long-term outdoor performance has not been extensively tested, and condensation inside the case may pose a risk to the electronics.
